CNC Machining Service
Choose PaikeOne‘s CNC machining services for precision, reliability, and a commitment to delivering high-quality, custom-manufactured parts.
Rapid prototyping and production
Fully inspected before delivery
MOQ 1 PC and as fast as 2 days delivery
Start Get A Quote
All drawings are secure and confidential.
CNC Machining Process
CNC Milling Machining
3-, 4- & Full 5-Axis
CNC Turning Machining
Turning, Swiss Turning, Turn-Mill
Machines
Auxiliary Process
Wire Cutting, EDM, Grinding, etc
Surface Finishing
Sandblasting, Anodizing,
Electroplating, Polishing, etc
CNC Machining Tolerance
If not otherwise specified on the technical drawing, all parts will be machined to ISO 2768 tolerance standards below. Generally you can
choose ISO 2768-m, ISO 2768-f or specify more tighter tolerances in your 2D technical drawings.
Linear Dimension
Limits for nominal size
F (fine)
M (medium)
C（coarse)
V（very coarse)
0.5mm to 3mm
±0.05
±0.1
±0.2
–
Over 3 up to 6
±0.05
±0.1
±0.3
±0.5
Over 6 up to 30
±0.1
±0.2
±0.5
±1.0
Over 30 up to 120
±0.15
±0.3
±0.8
±1.5
Over 120 up to 400
±0.2
±0.5
±1.2
±2.5
Over 400 up to 1000
±0.3
±0.8
±2.0
±4.0
Over 1000 up to 2000
±0.5
±1.2
±3.0
±6.0
Angular Dimension
Limits for nominal size
F (fine)
M (medium)
C（coarse)
V（very coarse)
Up to 10
±1º
±1º
±1º30′
±3º
Over 10 up to 50
±0º30′
±0º20′
±1º
±2º
Over 50 up to 120
±0º20′
±0º20′
±0º30′
±1º
Over 120 up to 400
±0º10′
±0º10′
±0º15′
±0º30′
Over 400
±0º50′
±0º20′
±0º10′
±0º20′
CNC Machining Materials
Aluminum
Mild Steel
Stainless Steel
Titanium Alloy
Tool Steel
Magnesium Alloy
Copper
Invar
Brass
Inconel
ABS
Polypropylene
POM
Polycarbonate
Acaylic
Polyethylene
PEEK
PVC
Nylon
PET
We can source any other material on request, Get A Quote Now.
CNC Machining Surface Finishes
We can instantly quote a wide variety of post-machining surface finishes.
As machined
(Ra 3.2μm / Ra 126μin)
See details
Smooth machining
(Ra 1.6μm / Ra 63μin)
See details
Fine machining
(Ra 0.8μm / Ra 32μin)
See details
Polishing
(Ra 0.8μm / Ra 32μin)
See details
Brushed
(Ra 1.2μm / Ra 47μin)
See details
Bead blasted
See details
Powder coated
See details
Black oxide
See details
Electroless Nickel Plating
See details
Bead Blasted + Chromate Conversion Coating
See details

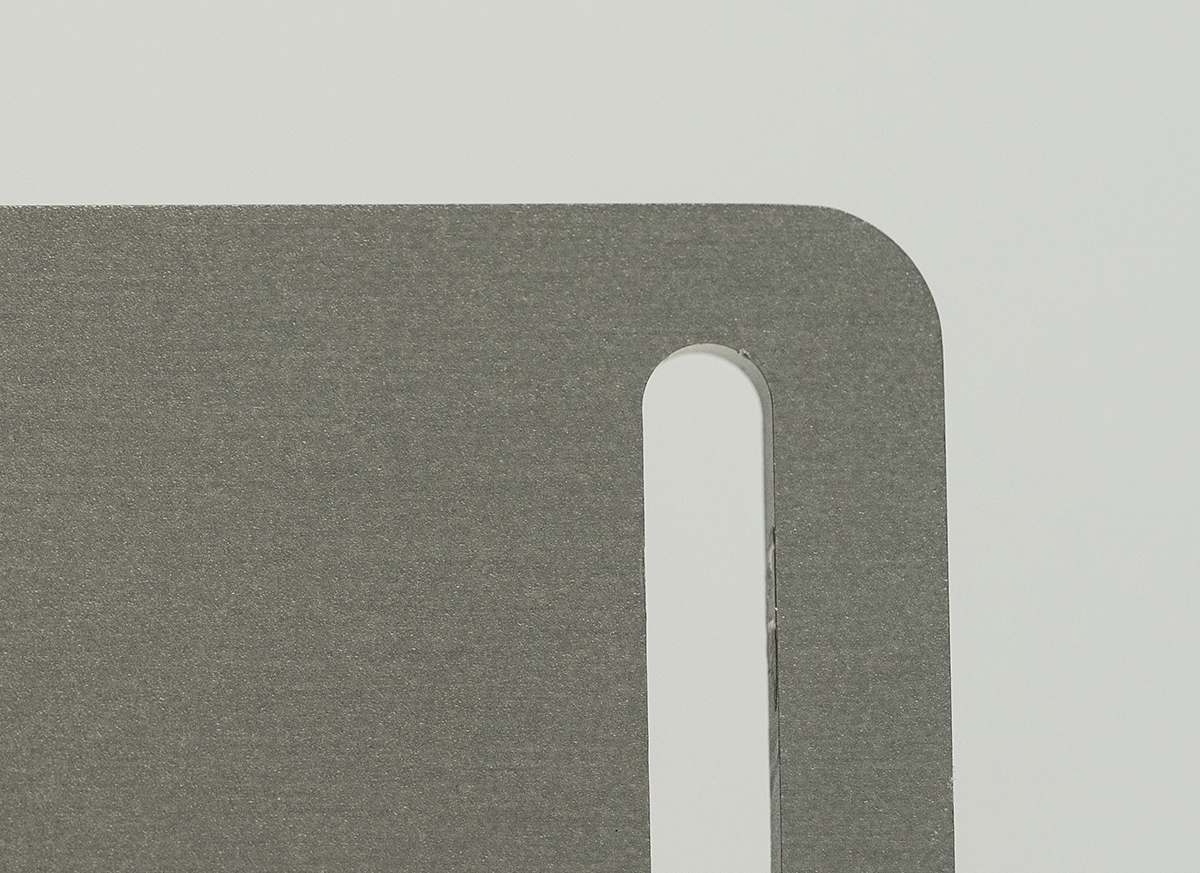

Bead Blasted + Anodized type III
(Hardcoat)
See details

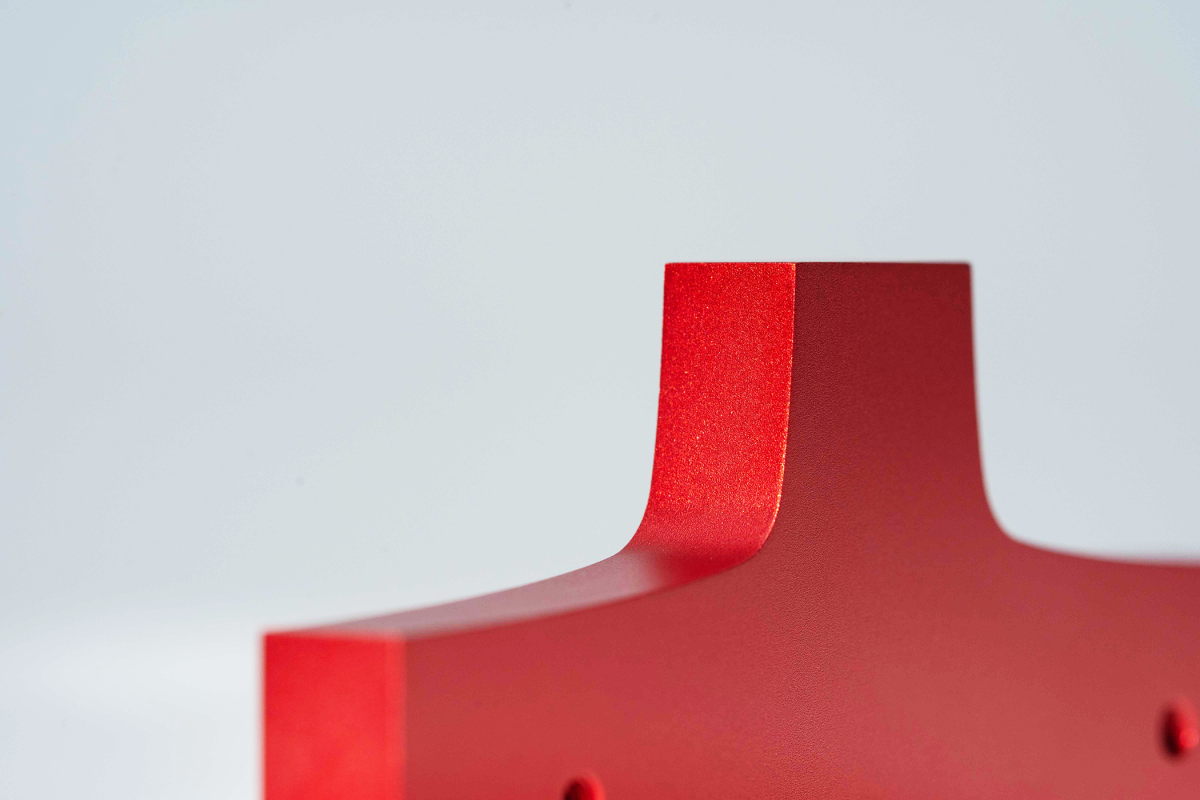

Bead Blasted + Anodized type II
(Glossy)
See details

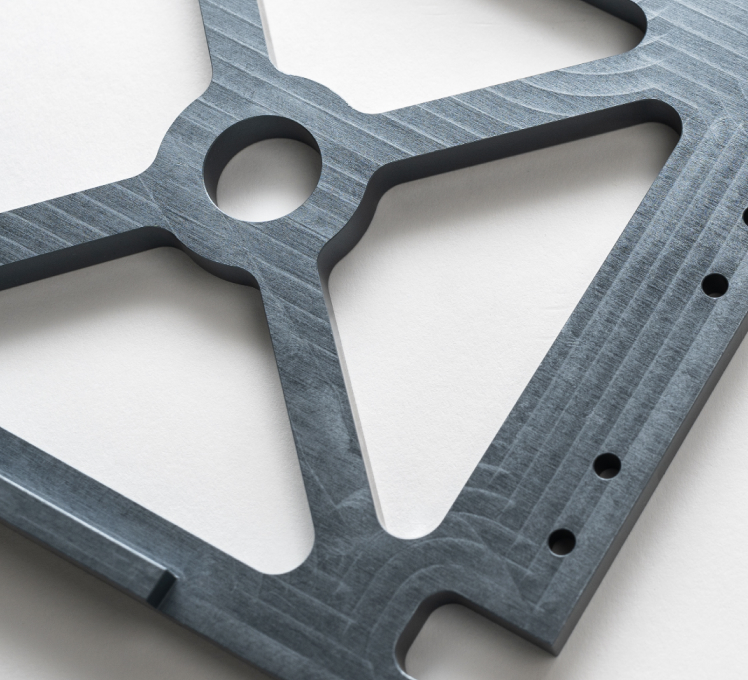

As machined + Anodized type II
See details
Brushed + Anodized type II
See details
Bead Blasted + Anodized type III
(Hardcoat)
See details
Bead Blasted + Anodized type II
(Glossy)
See details
